Description
Describe:
Main processor
SOC: Junzheng T31
DDR: 64M Bytes
Image Sensor
Sensor: 1/2.9 color CMOS sensor
IR-CUT: Color black and white switcher

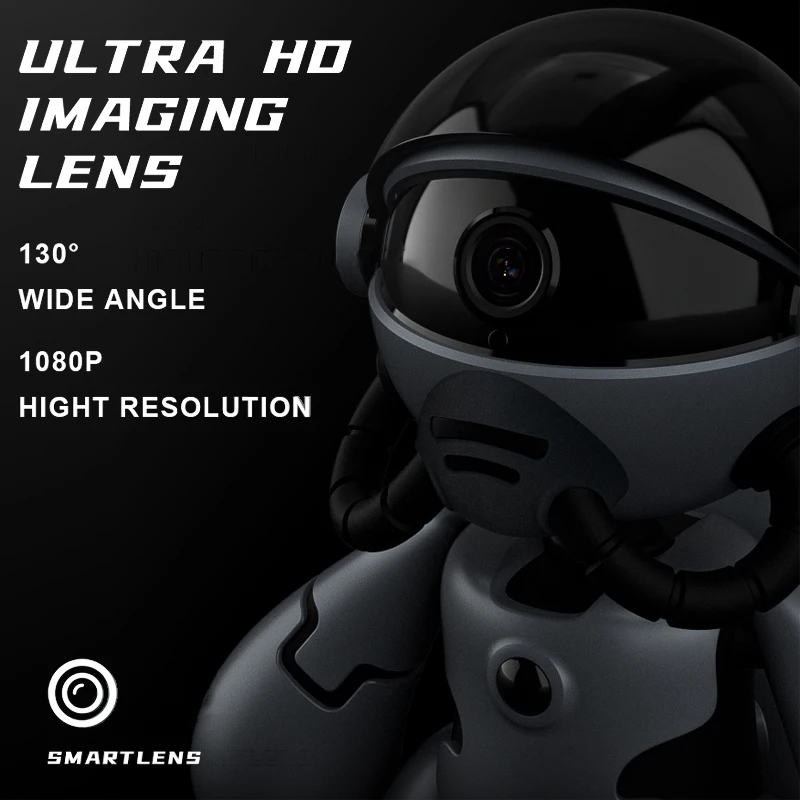

Lens: M12 f3.7MM F.2.0 2OOW
Viewing angle: H (horizontal) 89 degrees; V vertical 52 degrees: D diagonally 108 degrees
Minimum illumination: 0.01Lux
Audio
Input/Output: Two-way voice intercom can be realized (built-in microphone and speaker)
Audio compression method: G711A
video
Video compression method: H.264
Lighting frequency: 50Hz
Image frame rate: 20ps
Maximum image resolution: 1920*1080P
Night vision light source: 14mil infrared light (940nM wavelength), irradiation distance: 6 meters
The internet
Wireless network: 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Support protocol: TCP/IP, UDP/IP, DHCP
Support IP address: support wireless wifi, dynamic IP address
AI
Human body detection: support human body detection (4-5 meters), smart push, remote wake-up
Alarm method
Alarm notification: mobile APP message push
Wake up
Wake-up mode: PIR human body induction wake-up, remote active wake-up
Video
Recording method: alarm trigger, manual recording, all day recording
Video storage: local Micro SD card, mobile phone memory
Indicator light
LED indication: RGB three-color light, power/point-to-point mode/remote mode
Battery
Capacity: 3000mah
Removability: detachable arm and base
Use time: 2 months (depending on the wake-up situation)
Standby time: 1 year
Charging voltage: DV 5V+-5%/2A
Charging time: within 6 hours
Protection mode: overcurrent/overdischarge/overcharge/short circuit/high and low temperature charging protection
Power consumption
Standby power consumption: (3.7V 0.18mA)
Working power consumption during the day: (3.7V 230mA)
Power consumption at night: (3.7V 400mA)
Interface
Power supply: Type-C interface
SD card: 1 Micro SD card (up to 128GB)
Buttons: 1 reset button, 1 switch button
environment
Dustproof and waterproof: not waterproof
Working environment: -10° ~ 45°C /0% ~ 80% (non-condensing)
Storage environment: -20°C ~ 60° /0% ~ 90% (no condensation)
Specification
Size (LxWxH): Body: 18cm (height) x 15cm (length) x 9cm (width)
Base size: Φ 8.5CM
Net weight of bare metal: about 403g
Material + Craft: ABS

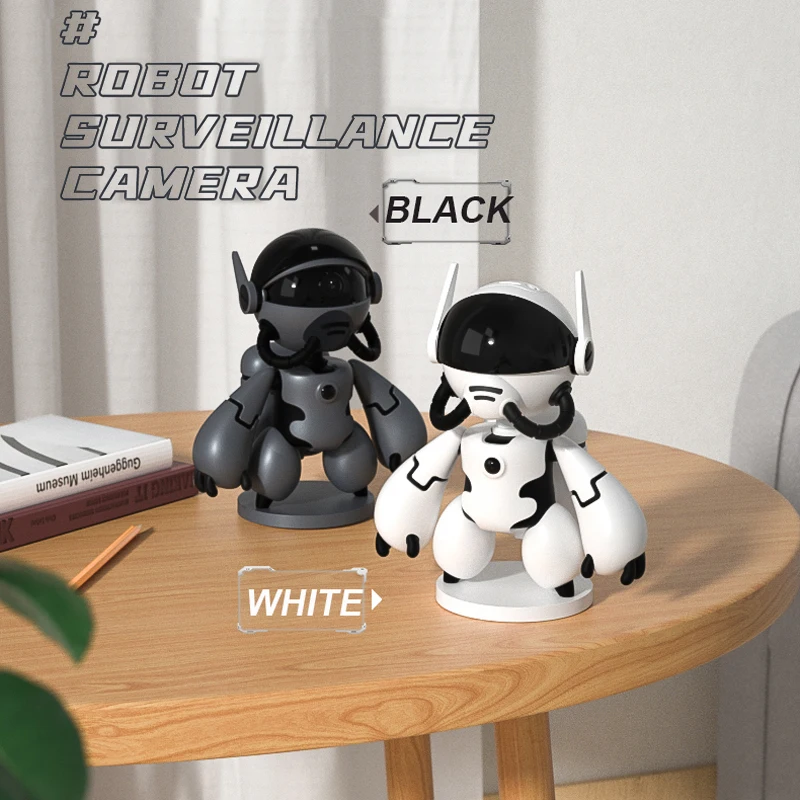

Color: white/black
Color box packing size: 20*17*10CM
Weight with packaging: 656g
Package includes: camera*1 charging cable*1 manual*1

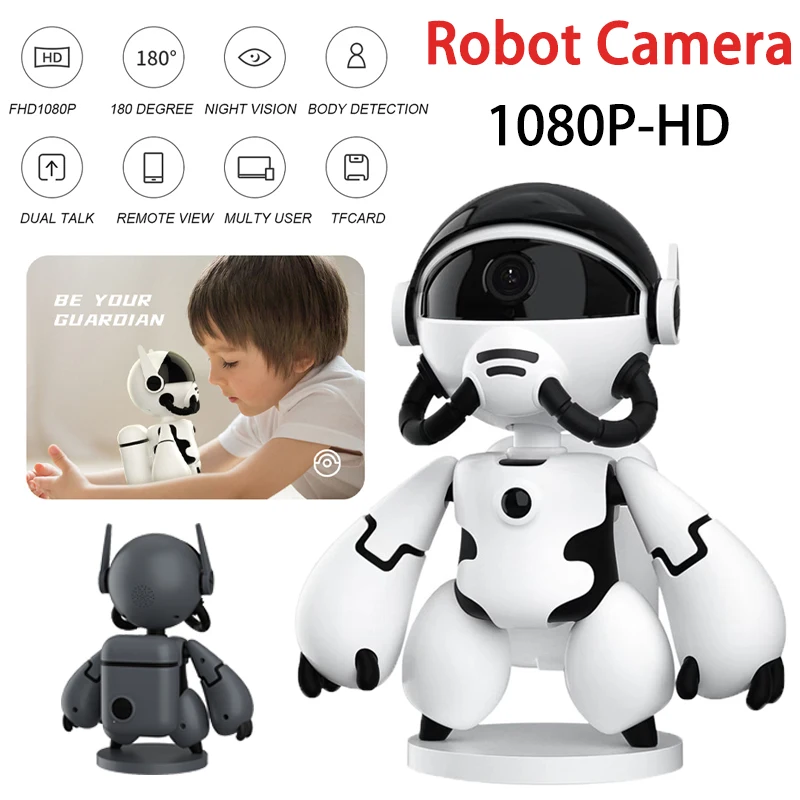

Features:
◆ Simple installation, convenient use, full wireless, no need to pull cables, privacy cover to prevent hackers from intruding and prying into privacy.
◆ The image is clear and smooth, and the intelligent transmission exerts the limits of the network.
◆ The device can be waked up remotely, the head can be rotated 180° left and right by the mobile phone app, and the goggles can be up and down 75°.
◆ Standard H.264: 1. Low bit rate.
2. High-quality images.
3. Strong fault tolerance.
4. Strong network adaptability.
◆ Support remote monitoring, remote viewing, two-way voice intercom, echo cancellation, and noise suppression.
◆ Support Android, IOS smart terminal remote real-time monitoring.
◆ 200W high-definition pixels (1920X1080), clear picture quality.
◆ Single light source night vision lighting (night vision distance 6 meters), infrared lamp fill light, realize night vision image effect.
◆ Built-in rechargeable lithium battery, long battery life, up to 2 months of normal work, 12 months of standby time.
◆ Support 2.4G Wi-Fi (IEEE802.11b/g/n).
◆ Support micro SD card (up to 128GB) storage, mobile phone recording.
◆ Support point-to-point short-distance connection to the distribution network.
◆ Support human body detection and intelligent push.
◆ Detachable base, the base is pasted with non-slip pads.
